Custom - Bulkhead Kit

Custom -   Bulkhead Kit
Click to enlarge
Price: $15.00
Availability: 117
Model: Soldered keg kit
Manufacturer: Bargain Fittings
Average Rating: 5 out of 5 Stars!

Available Options:
Inside the vessel fitting:
Valve :
Hose Barb (valve outlet):



Custom WELDLESS BULKHEAD for walls to 3/16" THICK





Basic bulkhead includes:

  • 1/2" NPT Stainless steel coupling
  • One high temp silicone Gasket (red or white - DEPENDING ON SUPPLY)
  • 1/2" NPT soldered bulkhead

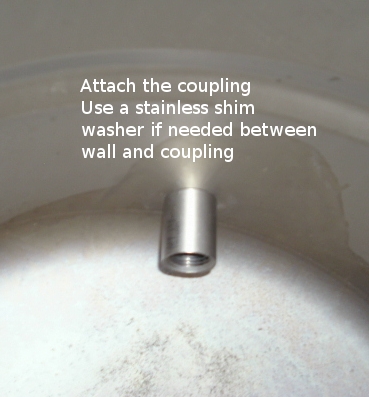

A 1/2" Female NPT threaded fitting or valve is required to secure the free end that goes through the hole.

Very thin walled kettles will require a shim washer. Click here.

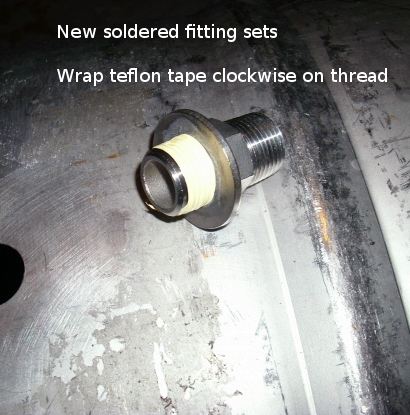

MALE NPT THREADS REQUIRE WHITE OR YELLOW PTFE (TEFLON) PLUMBERS TAPE BEFORE ASSEMBLY.   YOU WILL GALL (BOND) THE THREADS WITHOUT IT.

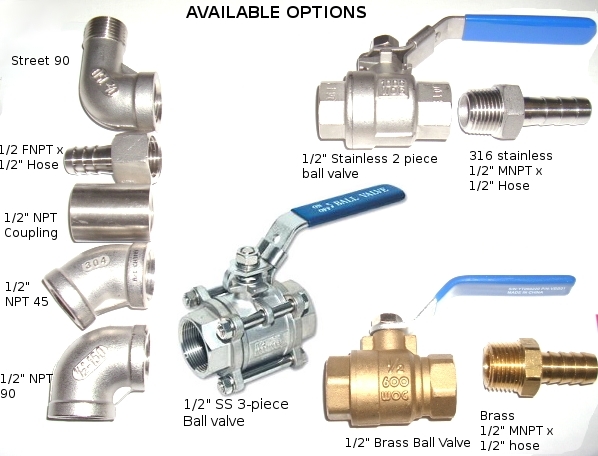

Picture below shows options available for order with these bulkheads.

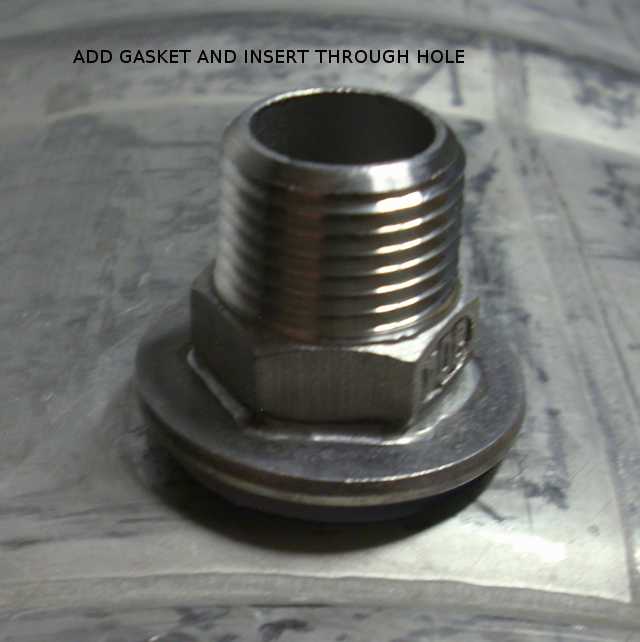

INSTALLATION PICTURES
