Stainless Drain tube / pick up kit

INSTALLATION HOWTO

The compression fitting is necessary to attach the tube to a weldless or welded bulkhead fitting kit.

The pickup tube kit with the compression adapter fitting is designed to screw into a 1/2" NPT female coupling.  It works with the weldless and welded fitting keg sets sold on this site.

The Center pickup is designed to fit a SANKEY STYLE KEG

Typical use is on hot liquor tanks or with a false bottom.  Will fit a 1/2" hole in most false bottoms.

The Side pickups can be used with a sankey keg or a flat bottom kettle.

Typical use is in a boil kettle or a flat bottle kettle.  If you use an immersion chiller this can help you keep the hop debris and break material in the middle portion of the keg.

NOTE: If you are wanting a welded version please specify how the coupling is welded into your kettle.  If it welded flush to the inside wall select "welded flush to inside wall".   If welded in the center of the coupling select "welded at center"

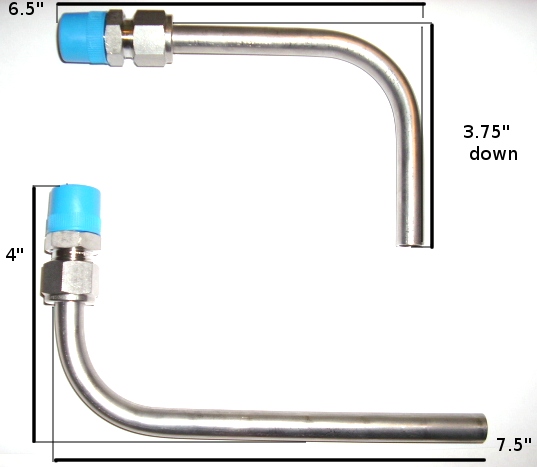

Measurements for weldless version pickups.
